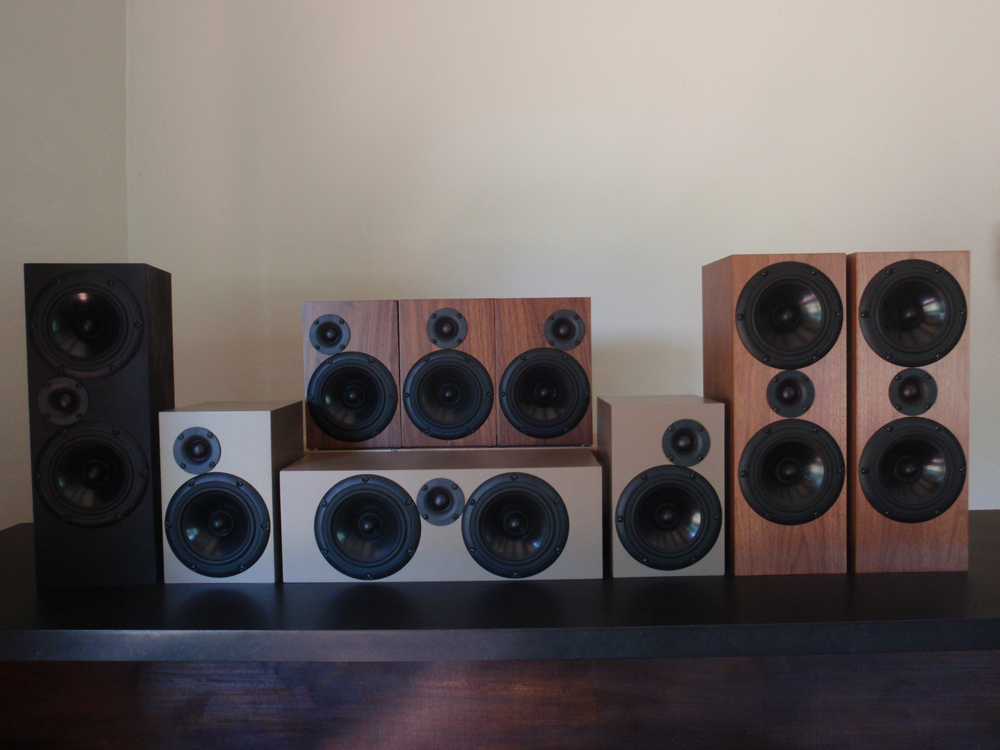

The name Point Line is shorthand for the core engineering philosophy behind these new speakers:
|
Point - coherent, point-source behavior afforded by the use of small, closely spaced drivers in small (under one cubic foot) form factors that make them a practical addition to any environment. |
|
Line - linear response with predictable dispersion to work equally well in two channel or multi-channel environments and a linear progression in size and function, allowing a mix and match approach based on room parameters. |
The Point Line is designed around a new wool & pulp 5.25" woofer with a patented voice coil design that is large for good power handling, while still providing delicate midrange which is the hallmark of a great bookshelf speaker. Complimenting the new woofer is a 1" soft dome tweeter designed with broad dispersion and the solid dynamics Speakerlab has always been known for. Each model has a crossover tailored to optimize the drivers in each enclosure, using our own custom wound inductors (custom made right here in Washington!) and hand matched components for accurate voicing. The Cabinets are 3/4" thick MDF to prevent any vibration (also made here in Washington) and are filled with environmentally friendly (and acoustically superior) Bamboo batting.
POINT 1
- POINT1 ($500.00 pair)A rethinking of our most popular speaker ever, the Point1 is a small (.1 cubic feet, get it??) sealed box two way, with the dynamics and power handling of a much larger speaker! For more information, click here.
Kit Prices: Electronic Kit $312.00 pair, Unfinished Kit, MDF $381.00 pair, Unfinished Kit, Veneer $417.00 pair - POINT1-c ($260.00 each)The center channel variation of our compact Point1 bookshelf speaker. All the same features and specifications, but with a centered tweeter. For more information, click here.
Kit Prices: Electronic Kit $166.00 each, Unfinished Kit, MDF $200.50 each, Unfinished Kit, Veneer $218.50 each - POINT1-ow ($550.00 pair)A 3.5 inch thick variation of our Point1, designed for on-wall or in-wall mounting. Great for surrounds, under or around a flat screen, or ceiling mounting for new 3D audio formats! For more information, click here.
Kit Prices: Electronic Kit $312.00 pair, Unfinished Kit, MDF $431.00 pair, Unfinished Kit, Veneer $467.00 pair
POINT 2
- POINT2 ($765.00 pair)The Point1's bigger brother, the Point2 is a mini-tower with twice the cabinet volume and twice the woofers, increasing the efficiency and bass extension, while preserving the small footprint. A great speaker for stereo listening, also perfect for modest sized media rooms. For more information, click here.
Kit Prices: Electronic Kit $420.00 pair, Unfinished Kit, MDF $507.00 pair, Unfinished Kit, Veneer $555.00 pair - POINT2-c ($393.00 each)The center channel variation of our Point2. All the same features and specifications, but with a centered tweeter. For more information, click here.
Kit Prices: Electronic Kit $220.00 each, Unfinished Kit, MDF $263.50 each, Unfinished Kit, Veneer $287.50 each - POINT2-ow ($815 pair)A 3.5 inch thick variation of our Point1, designed for on-wall or in-wall mounting. Great for surrounds, under or around a flat screen, or ceiling mounting for new 3D audio formats! For more information, click here.
Kit Prices: Electronic Kit $420.00 pair, Unfinished Kit, MDF $557.00 pair, Unfinished Kit, Veneer $605.00 pair - POINT2D ($765.00 pair)The D'Appolito variation of the Point2, with a midrange-tweeter-midrange configuration that provides a narrower vertical dispersion, is the right choice if you want to decrease floor and ceiling reflections. For more information, click here.
Kit Prices: Electronic Kit $420.00 pair, Unfinished Kit, MDF $507.00 pair, Unfinished Kit, Veneer $555.00 pair - POINT2D-c ($393.00 each)The center channel variation of our Point2D. All the same features and specifications, but with a centered tweeter. For more information, click here.
Kit Prices: Electronic Kit $220.00 each, Unfinished Kit, MDF $263.50 each, Unfinished Kit, Veneer $287.50 each - POINT2D-ow ($815.00 pair)A 3.5 inch thick variation of our Point2D, designed for on-wall or in-wall mounting. Great for surrounds, under or around a flat screen, or ceiling mounting for new 3D audio formats! For more information, click here.
Kit Prices: Electronic Kit $420.00 pair, Unfinished Kit, MDF $557.00 pair, Unfinished Kit, Veneer $605.00 pair - POINT2C ($393.00 each)The Horizontal center channel variation of our Point2D. All the same features and specifications, but in a horizontal orientation for locations that require it. For more information, click here.
Kit Prices: Electronic Kit $220.00 each, Unfinished Kit, MDF $263.50 each, Unfinished Kit, Veneer $287.50 each - POINT2C-c ($393.00 each)The Horizontal center channel variation of our Point2D-c. All the same features and specifications, but in a horizontal orientation for locations that require it. For more information, click here.
Kit Prices: Electronic Kit $220.00 each, Unfinished Kit, MDF $263.50 each, Unfinished Kit, Veneer $287.50 each
KITS DETAILS
Each speaker in the line is available in a variety of versions:
- EK (Electronics Kit) consisting of all the parts you need (woofer, tweeter, crossover, back cup, wire and filler). Does not include the cabinet.
This kit is for the person who wants to build and finish their own enclosure. We provide the dimensional information needed for the speaker to perform optimally, the rest is up to you. - UKM (Unfinished cabinet Kit, MDF) consisting of the Electronics Kit, plus an unfinished MDF cabinet and fasteners.
This kit is for the person who wants to just put the finish on a cabinet (or leave it raw) and assemble their speakers - this is the quickest and least expensive way to great sound! - UKV (Unfinished cabinet Kit, Veneer) consisting of the Electronics Kit, plus an unfinished veneered cabinet and fasteners.
This kit is for the person who wants to just put the finish on a cabinet (or leave it raw) and assemble their speakers! We chose a veneer that takes stain well, so you can stain it the color you want.
We may add more finishes and versions, and can do completely custom work if needed.
