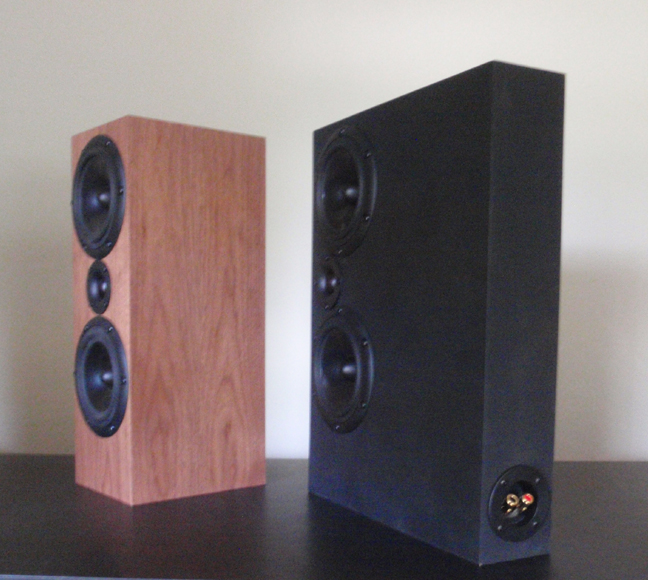

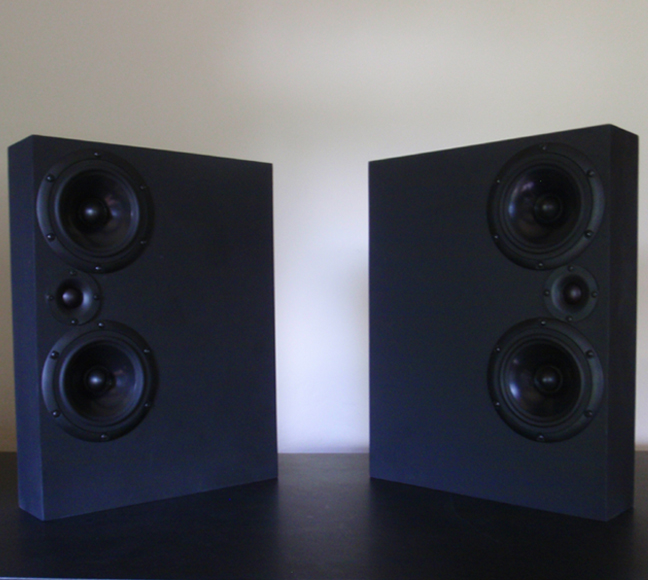

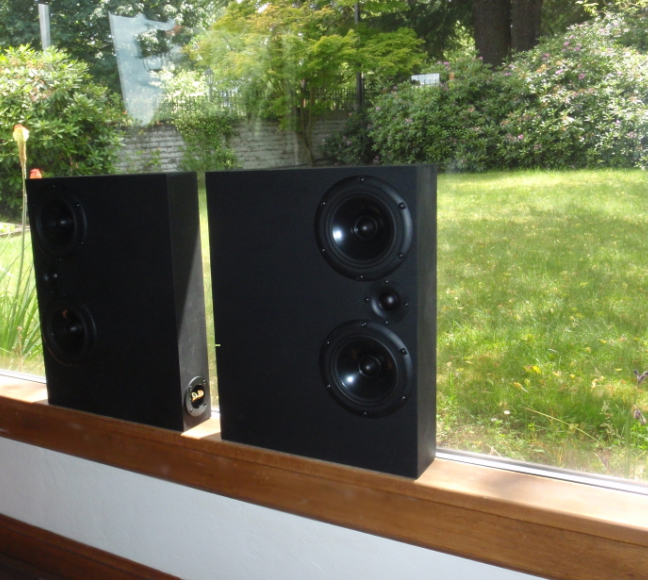

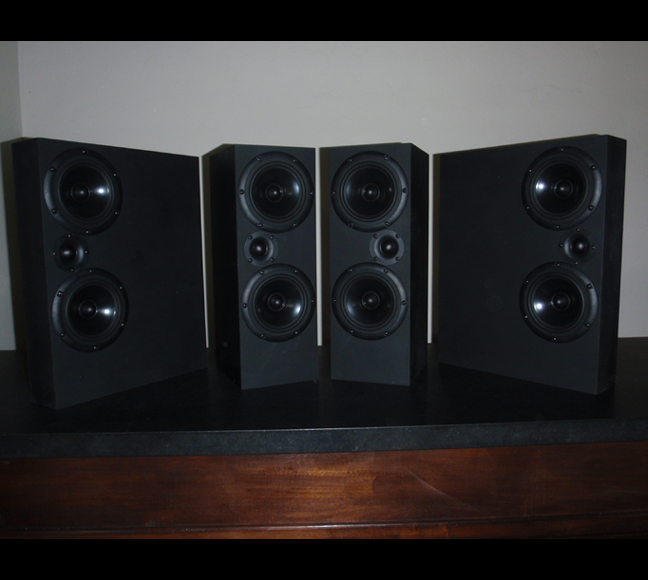

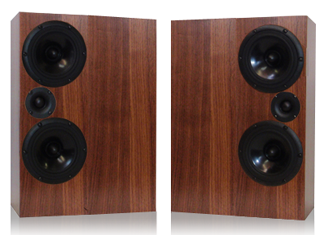

POINT2D-ow
A 3.5 inch thick variation of our Point2D, designed for on-wall or in-wall mounting. Great for surrounds, under or around a flat screen, or ceiling mounting for new 3D audio formats!
Fully Assembled Speaker
Features:
- Compact, acoustic suspension (sealed box) tower design. Good for cabinet, shelf or stand mounting (can be wall mounted with optional brackets)
- Proprietary wool & pulp 5.25" woofers designed for smooth dynamics and high power handling
- Proprietary 1" soft dome tweeter designed for broad dispersion and solid dynamics
- Sized and voiced to perform correctly on a bookshelf without the exaggerated bass and highs of other speakers
- Mirror matched cabinets for better imaging (if you need a single speaker for use as a center channel, please email us and we can make a symmetrical cabinet for you)
- Single binding posts for secure connection of high quality cables
- Available as a finished speaker or as an easily assembled kit
- Environmentally responsible construction utilizing formaldehyde-free MDF, bamboo fill and green finishing materials
Specifications:
- Finished speaker dimensions: 18.5" x 14.25" x 8" (HxWxD)
- Weight: 18 lbs (each)
- Minimum Recommended Amplifier Power: 15 Watts RMS
- Maximum Recommended Amplifier Power: 250 Watts RMS
- Frequency Response: 65Hz-20,000Hz
- Nominal Impedance: 8 Ohms
- Sensitivity: 88dB 2.83V@1m
- Cabinet Construction: 3/4" Formaldehyde-free MDF
- Tweeter detail: 1" fabric soft dome, neodymium magnet, large volume back chamber for low resonance, low profile faceplate for minimum diffraction and wide dispersion
- Woofer detail: 5.25" coated wool and paper cone, glass reinforced anti-resonant polymer basket, butyl rubber surround, low loss, linear CONEX-cotton blended spider, OHFC high purity copper voice coil wire, XBL motor structure, copper shorting ring embedded in the top plate, aluminum shorting ring embedded inside the magnet
- Crossover detail: Proprietary symmetrical second order (Linkwitz-Riley) 12dB per octave electronic (18dB per octave acoustic) network centered at 2.7kHz
Speaker Kits
Point2D-ow EK
(Electronic Kit)
Price: $420.00 pair
EK (Electronics Kit) consisting of all the parts you need (woofer, tweeter, crossover, back cup, wire and filler). Does not include the cabinet.
This kit is for the person who wants to build and finish their own enclosure. We provide the dimensional information needed for the speaker to perform optimally, the rest is up to you.
Point2D-ow UKM
(Unfinished Kit, MDF)
Price: $557.00 pair
UKM (Unfinished cabinet Kit, MDF) consisting of the Electronics Kit, plus an unfinished MDF cabinet and fasteners.
This kit is for the person who wants to just put the finish on a cabinet (or leave it raw) and assemble their speakers - this is the quickest and least expensive way to great sound!
Point2D-ow UKV
(Unfinished Kit, Veneer)
Price: $605.00 pair
UKV (Unfinished cabinet Kit, Veneer) consisting of the Electronics Kit, plus an unfinished veneered cabinet and fasteners.
This kit is for the person who wants to just put the finish on a cabinet (or leave it raw) and assemble their speakers! We chose a veneer that takes stain well, so you can stain it the color you want.
* These are currently special order. Please contact us for information.
