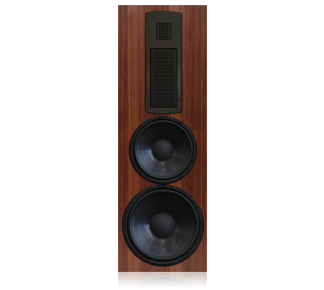

SUPER SEVEN T-c
The center channel variation of the SUPER SEVEN T. All the same features and specifications, but with a centered midrange/tweeter array.
Fully Assembled Speaker
Features:
- Large 4 driver, 3 way, multi-chambered acoustic suspension (sealed box) design. Can be floor, stand, cabinet or soffit mounted (can be wall mounted with optional brackets)
- High efficiency design, allowing it to work with receivers and small amplifiers, as well as providing very high dynamics with larger amplifiers
- Proprietary Force BalanceTM woofer alignment designed for high output and low distortion
- 10" planar magnetic ribbon midrange designed for smooth dynamics and high power handling
- 3" planar magnetic ribbon designed for broad dispersion and solid dynamics
- Vertically symmetrical drivers
- Dual 5 way binding posts for secure connection of high quality cables, single or bi-wired
- Available as a finished speaker or as an easily assembled kit
- Environmentally responsible construction utilizing formaldehyde-free MDF, bamboo fill and green finishing materials
Specifications:
- Finished speaker dimensions: 39" x 13" x 15" (HxWxD)
- Weight: 78 lbs (each)
- Minimum Recommended Amplifier Power: 15 Watts RMS
- Maximum Recommended Amplifier Power: 500 Watts RMS
- Frequency Response: 31Hz-20,000Hz, +/-2.5dB
- Nominal Impedance: 8 Ohms
- Sensitivity: 92dB 2.83V@1m
- Cabinet Construction: Heavily braced 3/4" Formaldehyde-free MDF
- Tweeter detail: 3" planar magnetic ribbon, neodymium magnet, large volume back chamber for low resonance, low profile faceplate for minimum diffraction and wide dispersion
- Midrange detail: 10" planar magnetic ribbon, neodymium magnet, custom damped back chamber for low resonance, low profile faceplate for minimum diffraction and wide dispersion
- Woofer detail: Force BalanceTM alignment utilizing proprietary 10" and 12" woofers. Coated paper cones, steel baskets, butyl rubber surrounds, low loss, linear CONEX-cotton blended spiders, OHFC high purity copper voice coil wire, and overhung motor structures
- Crossover detail: Proprietary symmetrical second order (Linkwitz-Riley) 12dB per octave electronic (18dB per octave acoustic) network
Speaker Kits
SUPER SEVEN T-c EK
(Electronic Kit)
Price: $1,728.50 each
EK (Electronics Kit) consisting of all the parts you need (woofer, tweeter, crossover, back cup, wire and filler). Does not include the cabinet.
This kit is for the person who wants to build and finish their own enclosure. We provide the dimensional information needed for the speaker to perform optimally, the rest is up to you.
SUPER SEVEN T-c UKM
(Unfinished Kit, MDF)
Price: $2,406.50 each
UKM (Unfinished cabinet Kit, MDF) consisting of the Electronics Kit, plus an unfinished MDF cabinet and fasteners.
This kit is for the person who wants to just put the finish on a cabinet (or leave it raw) and assemble their speakers - this is the quickest and least expensive way to great sound!
SUPER SEVEN T-c UKV
(Unfinished Kit, Veneer)
Price: $2,680.00 each
UKV (Unfinished cabinet Kit, Veneer) consisting of the Electronics Kit, plus an unfinished veneered cabinet and fasteners.
This kit is for the person who wants to just put the finish on a cabinet (or leave it raw) and assemble their speakers! We chose a veneer that takes stain well, so you can stain it the color you want.
* These are currently special order. Please contact us for information.
